+Pro/CABLE Training Wildfire 4.0

Course Duration: 24 Hours - 40 Hours

Tuition: $1500- $2500 USD respectively

Overview:
In this course, participants will gain a healthy knowledge of routing cables and individual conductors in Pro/E assemblies. They will also learn how to create 3-D electrical harnesses thru Pro/E assemblies using Routed Systems Designer. Participants will learn how to route electrical harnesses, create flattened harnesses for manufacturing, and document harness designs by creating flattened harness drawings that include customized BOM tables and wire list information. Participants will also learn how to create Wiring Block Diagrams and utilize that data for later autoroute functions thru assemblies. After successfully completing the course, participants will be able to create 3-D electrical harnesses and associated manufacturing deliverables using Pro/ENGINEER Wildfire 4.0. The 40 hour course covers extensive study and use of RSD or Mentror Graphics for creating harnesses automatically.

Training Track: Design Engine offers an RSD week workshop as a part of a cabling track.. Design Engine can also assist in the customization of company blocks that correspond with logical references to Pro/ENGINEER connectors. Call 312.226.8339 to inquire

Note: There are two classes available. One is a three day training class and the other is a five day training class. The use of RSD wiring diagrams can be offered for both workshops. The five day is a more exhaustive study of Pro/CABLE that utilizes RSD wire diagrams for creating harness in assemblies and focuses heavy upon auto route and problem solving harnesses.

Prerequisites: General knowledge of Pro/ENGINEER and a basic understanding of assemblies and top down will be design helpful.

RSD Training

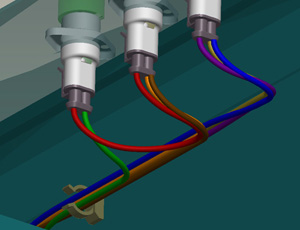

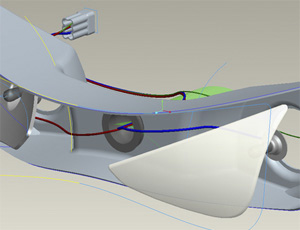

these wires are routed to connectors that plug into connectors in different assembly.

Topics: (can include)
Modeling 3-D Electrical Harnesses with Pro/ENGINEER Wildfire 4.0 or 5.0

Introduction to top down design with respet to Pro/CABLE and harness design.

In this course students learn how to create 3D electrical harnesses using Pro/ENGINEER Wildfire 4.0. This includes using schematic diagrams created with Routed Systems Designer to pass information into 3-D harness designs created within Pro/ENGINEER Wildfire 4.0.

Participants learn how to route electrical harnesses through Pro/E assemblies and separated top down models, create flattened harnesses for manufacturing, and document harness designs by creating flattened harness drawings that include customized BOM tables and wire list information. Participants will gain a firm grasp on large assemblies and top down design in these workshops.

After successfully completing the course, participants will be able to create 3-D electrical harnesses and associated manufacturing deliverables using Pro/ENGINEER Wildfire. Participants will also be able to use Routed Systems Designer to create wiring block diagrams, prepare RSD drawings for XML export and automatically route wires thru Pro/E assemblies.

Recommendations
It is strongly recommended that cabling designers attend this course and the Creating 2-D Schematics with RSD 6.0 or 7.0 and Pro/ENGINEER Wildfire 4.0 course. This will enable methodology of the complete process and an understanding of how the configuration of deliverables from RSD such as wiring diagrams provide essential input for creating electrical harness assemblies.

Audience
This course is intended for engineers, involved in the 3-D routing of electrical cabling and wire harnesses or Electrical Technicians who need more accurate harness drawings.

pro cable training

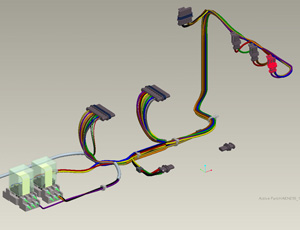

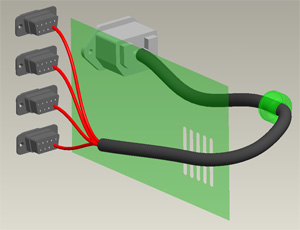

conductors routed from power to d-connectors. Green surfaces indicate copy geometry surface features from sub assemblies to ease file size for lighter routing.

Topics
-Diagram and Harness Development Process Overview.
-Creating Wiring Diagrams in RSD.
-Modify existing RSD diagrams for successfully XML export to -Pro/ENGINEER assemblies for autorouting.
-Transferring RSD Information into Harness Designs.
-Managing harness assembly designs with top down design.
-Creating Electrical Harness Assembly Structures.
-Routing Wires and cables in harness designs.
-Creating Flat Harnesses for Manufacturing.
-Creating Harness Drawings.
- Workflow issues with respect to construction thru to major changes to harness assemblies.

Discussions:
- Discuss how RSD integrated with routing cables and autoroute work together to enhance efficiency.
- Discuss alternate ways to gather usable connectors i.e. iges from web site resources.
- Discuss the difference between wires and conductors
- Discuss how to handle modifications to a cable if parts in the assembly turn up missing.
- Discuss how top down design aids in the cable routing process.
- Discuss why a designer might want to use top down design relationships made for routing harnesses before submitting to a team center or intralink or other library system.
- Discuss problems with autoroute with respect to spool data, RSD and Network Cables.
- Discuss solutions workflow with respect to initial construction of cables thru to autorouting process.

Projects & Tutorials:Design Engine has prepared a series of 15 Pro/CABLE tutorials and RSD tutorials designed to lead the participants through the cabling design and modification process. These HTML and video tutorials are left with the participants thru a password protected web site for a continued Design Engine learning experience.

Projects & Tutorials: However Design Engine is prepared to generate custom training materials upon student company interests or job requirements this preparation process takes time. Ten to twenty hours is often required for generating custom HTML tutorials. Call Design Engine to speak to a designer for inquiries 312.226.8339

Pro/CABLE Training

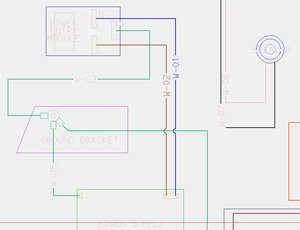

RSD can route pipes as well as cables as in the case of this screen shot.

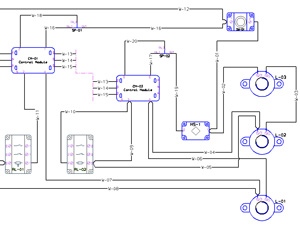

Routed Systems Designer pro cable routing and rsd
Routed Systems Designer requires preparation before exporting XML into Pro/ENGINEER assembly.
