+Rhino Level 4 'Advanced NURBS modeling'
Course Duration: 40 hours
Tuition: $2200 US
Overview: In this comprehensive 5-day
class you'll learn to create and edit accurate and free-form 3-D NURBS
models. Covers advanced functionality and includes more than just an ordinary
overview of the advanced surfacing commands. Ask about our reduced
cost four week Rhino training comprehenisve.
Prerequisite: This class is for those who are able to use Rhino
with a certain level of proficiency.
 |
|

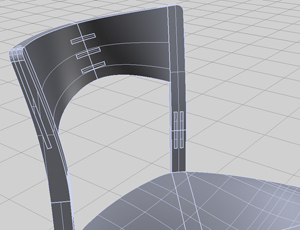

Michael Dreeben spline chair in Rhino |
Topics:
Curve Continuity:
Out of Tolerance
Positional Continuity (G0)
Tangency Continuity (G1)
Curvature Continuity (G3)
Curve Degree
Degrees 1, 2, 3, 4, & 5
Surface Commands w/ Continuity:
Network Surface
Sweep2
Patch (G1 only)
Loft (G1 only)
Blend (G1 or G2)
Analyzing Geometric Continuity:
Curvature Graph
Zebra Stripes
Environment Map
Complex G2 Geometry with History
Fairing Curves
Matching Curves
Controlling Curve Continuity with Along and Between Aliases
End Bulge
Inserting Knots
Sweep2
Surface from Curve Network
Interpolated Curves
Discussion:
Discuss Curve and Surface evaluation tools.
Discuss Surface continuity.
Discuss tips and tricks for making high quality models faster and easier.
Discuss advanced analysis tools in detail and use that knowledge to solve
several surface anomaly.
 |

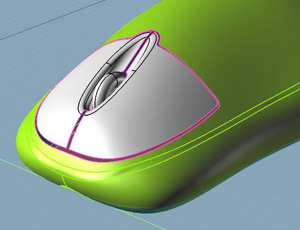

| This
mouse tutorial is an advanced modeling exercise |
Models and examples:
models in the course can come from a wide variety of examples
All of our workshops are customizable to your needs and interests. Onsite
and offSite available. Bring your own projects to have one of our instructors
assist you.
 |

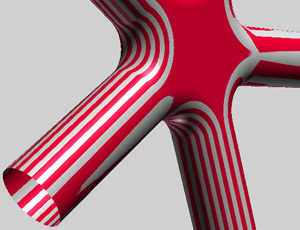

| Complex
Modeling with G2 Continuity |
 |

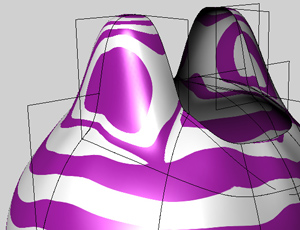

| Building
complex geometry with four part boundaries |
 |

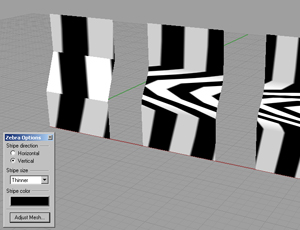

| Zebra
Stripe Analysis |
 |
|

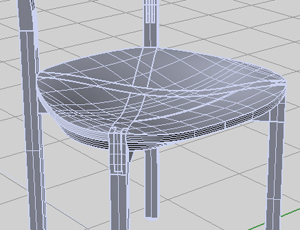

Michael Dreeben spline chair in Rhino |
|
