+ Level 5 Pro/SURFACE 'Advanced import' point cloud
and Restyle for reverse engineering products
Course Duration:
16 hours
Tuition: $1500 USD
Overview: Learn to create digitally
correct complex geometries relative to point cloud imports using parametric
curves and surfaces inside Pro/ENGINEER. Participants will work with a
choice of Pro/CONCEPT, Rhino, Geomagic, Restyle & Alias surface imports
or of various point cloud data.
Prerequisites: This workshop is only
for those designers or engineers who have taken at least two 16 hr workshops
from Design Engine in the past. Prior import experience is not necessary,
however this is an advanced class as such participants are expected to
have a high level of surfacing experience. We suggest either the design
engine
One weeklong product surfacing workshop as a prerequisite to
this class.
scan data import
Topics:
- Review basic import functions
- Go over in great detail redefining functions for import geometry.
- learn to manipulate import geometry
- Review in-depth advanced import functions
- Learn to manage various import geometries.
- Discuss in detail problems with import geometry and offer solutions.
- Learn workflow solutions and problem solving techniques with Pro/SURFACE
and ISDX.
- Learn to maintain some parametric ability with multiple imports.
- Learn to create fully modifiable Pro/E geometry with scan data.
- Learn to rebuild import geometry completely with full robust parametric
controls
- Use layers to manage offset surfaces in the solidification effort.
- Discuss using import geometry for checking assembly interference.
clay model scanned and modeled using specific tools inside Pro/SURFACE
and ISDX

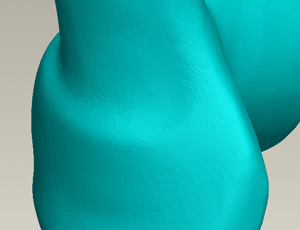

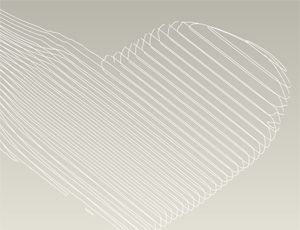

polygon scan data from a clay model.
Discussions:
- Discuss reverse engineering history and evolution.
- Discuss techniques for managing import data
- Discuss techniques for moving import data into the appropriate position
for managing the model construction process.
- Discuss Polygon imports and contrast from geomagic or restyle IGES
imports.
- Overview of wildfire restyle.
- Discuss strengths and weaknesses of wildfire restyle.
- Discuss workflow techniques for rebuilding robust parametric models
from import geometry.
- Discuss alternate techniques to getting scan data for capturing form.
- Discuss inspection techniques to compare one parametric model to existing
scan data.
- Discuss first article inspection techniques within Pro/ENGINEER

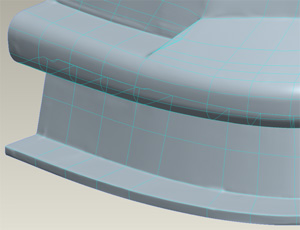

geomagic import data after import into Pro/ENGINEER WF4.0
'Edit Definition' of an import surface in WF2.0

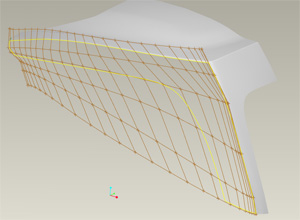

- Creating parametric curves and surfaces on top of static import geometry.
- Discuss the multitude of scan data techniques and offer suggestions
to users who actually conduct the scanning process for easier recreation
using Pro/ENGINEER.
- Discuss creating offset surfaces for shelling techniques.
- Discuss using import geometry for checking assembly interference.
- Discuss building parametric curve and surface geometry directly
or indirectly from IGES or STEP geometry.
- Discuss granite one seamless imports
- Discuss polygon imports in great detail and as apart of an exercise
use poly geometry to create robust parametric data.
- Discuss using ISDX to reverse engineer components and make parametric
and robust geometry that can be modified after analysis.
- Discuss import techniques for rebuilding ergonomic forms.
|
