+ Solid Works One Week Intensive
Week One
Learn proper modeling techniques with this near one on one instruction to utilize drawings to aid in modeling, cross sections, exploded views. basics of surfacing. See the solidworks four week 4 Week SolidWorks Comprehensive
Course Duration: 40 Hours
Tuition: $1800.00 US
Overview: Introduction to constraint based modeling utilizing the latest release of SolidWorks.
Prerequisite: mechanical aptitude and desire to learn SolidWorks.
Topics:
- SolidWorks sketch utilities including 3d curves.
- Customize environment / Map key development
- Creating features: Protrusions, Sweeps, Patterns, Shell and Draft
- Equations
- Detail drawings for documentation and assembly detail drawings complete with exploded views.
- Use Modify and Redefine features
- Cover basic surfacing complete with sweeps and lofts
- Utilize edit feature and edit sketch
- Learn to edit parts (with certainty) that others have modeled
- Learn to use drawings not only to document models but as design tools for controlling snap fit and accuracy
- Assembly's with solidworks.
Discussions:
- Discuss Edit Sketch plane
- Discuss systems options in detail.
- Discuss editing parts others have modeled.
- Discuss using surfaces by themselves and within parts.
- Discuss several top down modeling approaches for developing products.
- Discuss designing mechanisms complete with surface detection.
Project: Model/Detail a desk vice. If time permits, modify (make correct) an existing assembly of parts with interference issues.

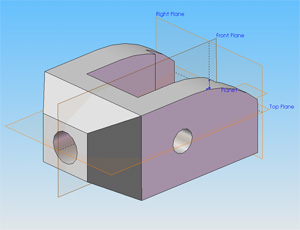

typical part beginners create in the second day of a one week solidworks training.

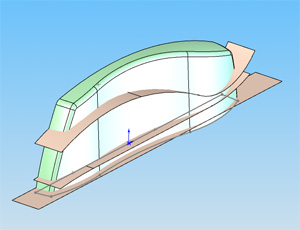

 Part of a surfacing excesses where participants learn about sweeps.
 top down design project for all one week students in SolidWorks training.
 example of a co-injected part created with surfaces and solidworks.
|
